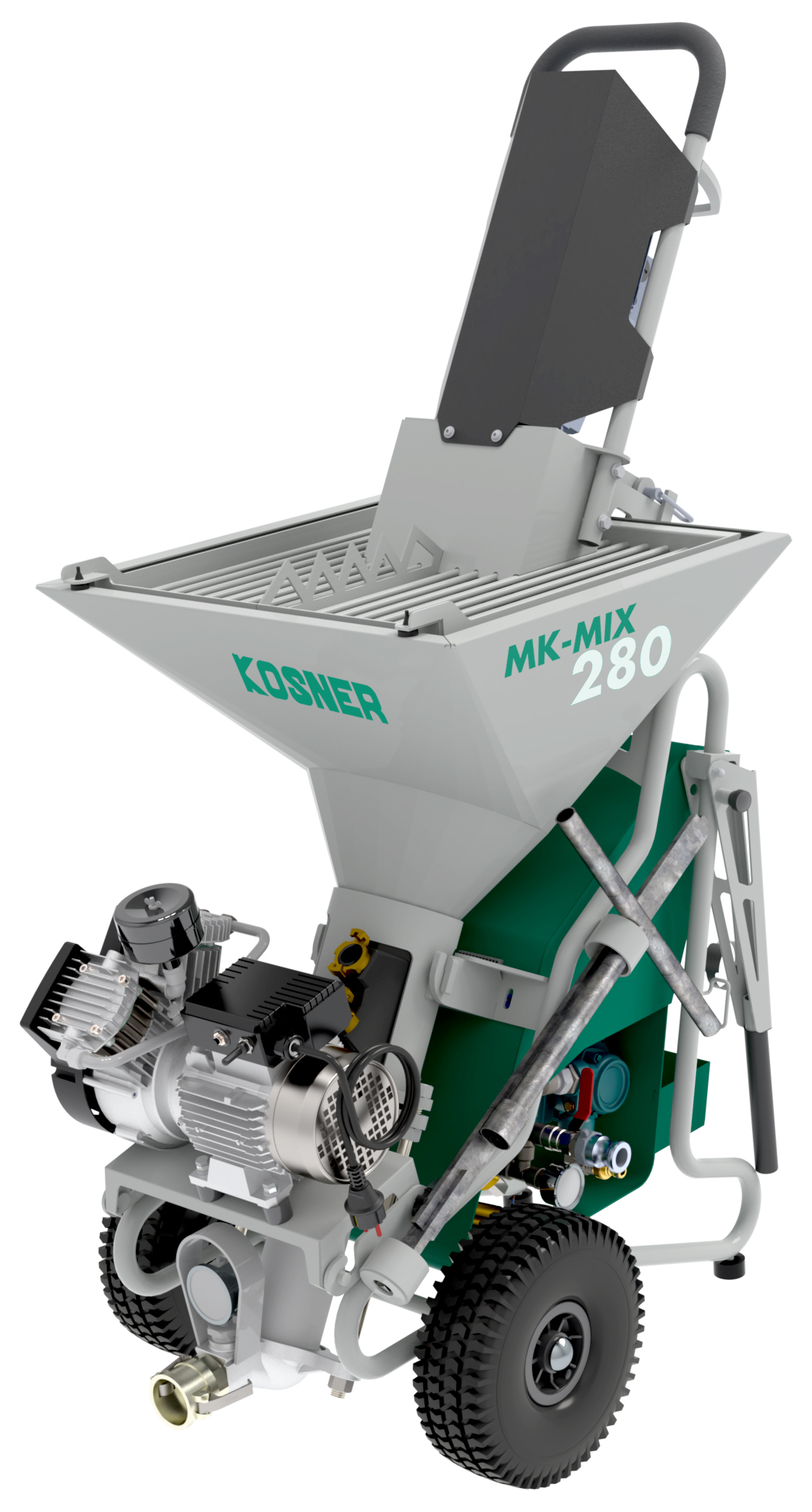

MK-MIX 280 complete continuous mixing machine
Product datasheet
Advice & DocumentsProduct datasheet
Description
Easy-to-use continuous mixing pump with a high yield.
It can be disassembled in 4 parts, without tools, for a simplified transport.
It can be disassembled in 4 parts, without tools, for a simplified transport.
Applications
Floor screed, plaster, air insulation, fireproof products, light powders (polystyrene) ...
Products with instant kneading and no need for rest time.
Products with instant kneading and no need for rest time.
Technical characteristics
Tank capacity
45 L
Electrical supply
230 V - 50 Hz
Thermal protection
yes
Geared-motor driving mixing arm
2,2 kW
Compressor
yes
Compressor power
1,1 kW
Compressor air flow
13 m3/h
Variable speed
no
Water pump
yes
Flow-meter
digital display
Water safety switch
yes
Product pressure
0 to 20 bar
Product flow-rate
up to 26 L/min
Rotor/stator
MIXER 26 - 16 L/min
Spraying yield
28 bags of 33 kg/h
Spraying max. hose length
20 m
Loading height
102 cm
Dimensions (l x w x h)
100 x 62 x 151 cm
Weight
115 kg
Noise level
78 Lwa
Delivered with
- a complete lance with screw-on ring nozzle
- a Ø25 x 8 m air/product hose
- a Ø19 x 2 m hose
- a platine mounted compressor
- an unplugging key
- a mixing tube cleaning part
- a mounting spray for rotor/stator
- two cleaning balls
- a Ø25 x 8 m air/product hose
- a Ø19 x 2 m hose
- a platine mounted compressor
- an unplugging key
- a mixing tube cleaning part
- a mounting spray for rotor/stator
- two cleaning balls
Réf. K040091
Cat. MAPKOS
EAN : 3664962101785
Public price
8 990,00 € pre-tax
