Description

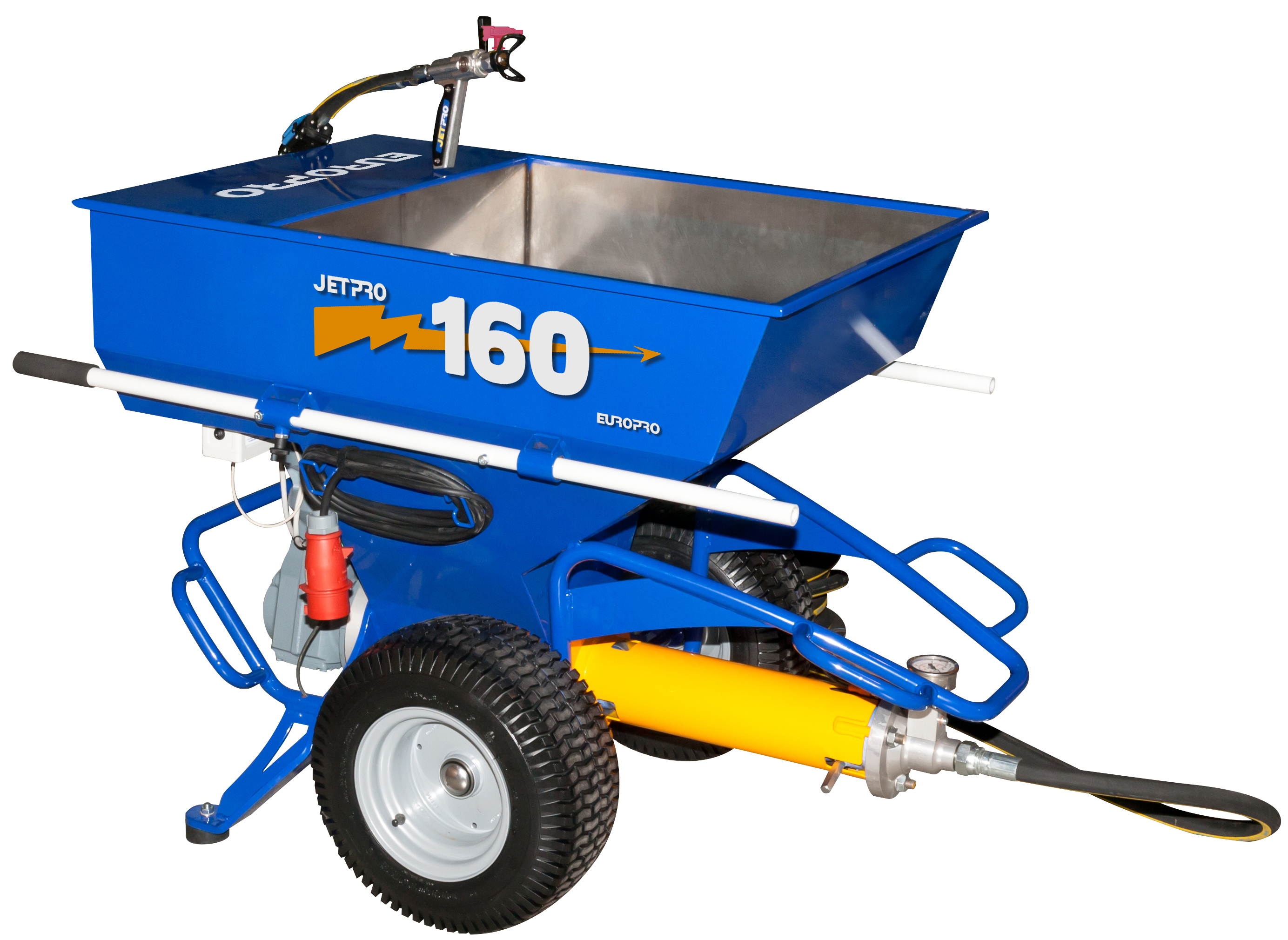

JETPRO 160 is a powerful machine for applying thin films of filler.
It uses a valveless pump, is easy to maintain, with a squared stainless steel tank for easy cleaning, a Ø35 mm drain valve. It is equipped with large diameter, flat profile, inflatable tyres for better stability.
The machine is equipped with a ball nose pump with integrated filter. Starting is wireless when the gun is opened.
The quick-release hoses make it easier to use on site.
It uses a valveless pump, is easy to maintain, with a squared stainless steel tank for easy cleaning, a Ø35 mm drain valve. It is equipped with large diameter, flat profile, inflatable tyres for better stability.
The machine is equipped with a ball nose pump with integrated filter. Starting is wireless when the gun is opened.
The quick-release hoses make it easier to use on site.
Applications
All types of ready-to-use film plasters: smoothing coating, raking coating, casing coating, bituminous coating ...
Can also make droplet type applications with an optional kit and a compressor.
Can also make droplet type applications with an optional kit and a compressor.
Technical characteristics
Maximum working pressure
140 bar
Maximum product flow-rate
10 L/min
Electric motor
4 kW
Power
400 V / 50 and 60 Hz
Type of pump
volumetric screw
Pump
JET 4
Tank capacity
160 L
Maximum tip size (new)
0,055"
Dimensions (L x w x h)
160 x 80 x 89 cm
Weight
171 kg
Noise level
91 Lwa
Delivered with
- a Ø19 x 40 m hose
- a Ø16 x 5 m hose
- a spray-gun with tip holder
- a Standard 627 tip
- a toolbox containing:
- a Ø16 x 5 m hose
- a spray-gun with tip holder
- a Standard 627 tip
- a toolbox containing:
- two spanners 17 and 22
- a multigrip plier
- three Allen keys Ø2, 5 and 8
- two cleaning balls and a cleaning brush
- 1 L of storage liquid
Réf. 30815
Cat. MAPJET
EAN : 3664962021724
Public price
11 990,00 € pre-tax
