TURBISOL 200 blowing machine
Product datasheet
Options
Advice & Documents
Exploded viewsProduct datasheet
Description
Powerful blowing machine designed for thermal and acoustic inner insulation.
Robust, it is equipped with a double turbine and a 325 L reinforced tank.
Practical and ergonomic with its transport arms and its frame with handles, it can be easily disassembled in 2 parts with only 4 screws.
Robust, it is equipped with a double turbine and a 325 L reinforced tank.
Practical and ergonomic with its transport arms and its frame with handles, it can be easily disassembled in 2 parts with only 4 screws.
Applications
Cellulose wadding, glass wool, wood wool, rock wool, fireproofing products, hemp.
Technical characteristics
Electrical supply
230 V / 50-60 Hz
Maximum current
16 A
Motor power
1,5 kW
Transmission
by chain
Turbines
5000 L/min - 2 x 1400 W
Adjustable carding speed
yes
Pressure
0,3 bar
Cotton wadding flow-rate
0 to 60 bags/h
Glass whool flow-rate
0 to 20 bags/h
Tank capacity
325 L
Turbine suction filter
2

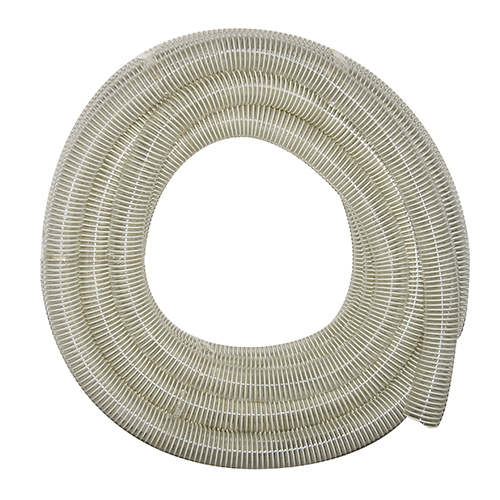

Product hose length
Ø75 x 25 m
Product outlet diameter
75 mm
Inflatable tyres
Ø 400
Wire-guided remote control
25 m Start/Stop
Loading height
139 cm
Dimensions (l x w x h)
116 x 76 x 161 cm
Weight
195 kg
Noise level
100 Lwa
Réf. 30506
Cat. VOLCAR
EAN : 3664962084521
Public price
11 990,00 € pre-tax
Description
Powerful blowing machine designed for thermal and acoustic inner insulation.
Robust, it is equipped with a double turbine and a 325 L reinforced tank.
Practical and ergonomic with its transport arms and its frame with handles, it can be easily disassembled in 2 parts with only 4 screws.
Robust, it is equipped with a double turbine and a 325 L reinforced tank.
Practical and ergonomic with its transport arms and its frame with handles, it can be easily disassembled in 2 parts with only 4 screws.
Applications
Cellulose wadding, glass wool, wood wool, rock wool, fireproofing products, hemp.
Technical characteristics
Electrical supply
230 V / 50-60 Hz
Maximum current
16 A
Motor power
1,5 kW
Transmission
by chain
Turbines
5000 L/min - 2 x 1400 W
Adjustable carding speed
yes
Pressure
0,3 bar
Cotton wadding flow-rate
0 to 60 bags/h
Glass whool flow-rate
0 to 20 bags/h
Tank capacity
325 L
Turbine suction filter
2
Product hose length
Ø75 x 25 m
Product outlet diameter
75 mm
Inflatable tyres
Ø 400
Wire-guided remote control
25 m Start/Stop
Loading height
139 cm
Dimensions (l x w x h)
116 x 76 x 161 cm
Weight
195 kg
Noise level
100 Lwa
Product datasheet Options Advice & Documents Exploded viewsOptions
Accessories and consumables
Flocking
Insufflation
Nipples - Reductions
Product datasheet Options Advice & Documents Exploded viewsAdvice & documents
On-site demonstration TURBISOL 164/2
VIDEO - TURBISOL 164/2 lime and hemp application
Product datasheet Options Advice & Documents Exploded viewsExploded views
