X-PRO D140 V2 liquid screed machine
Product datasheet
Options
Advice & DocumentsProduct datasheet
Description

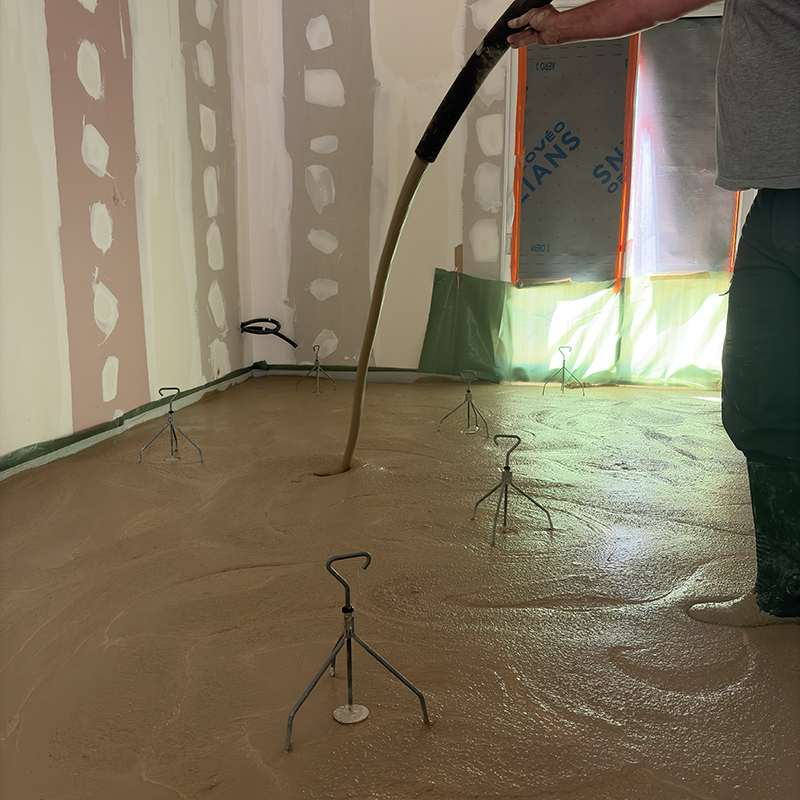

Thermal engine machine for pumping products such as liquid screed or for spraying shotcrete.
Manufactured in our workshop in Spain, it is equipped with a control panel with buttons for easy use, an engine with automatic idle speed accelerator and a variable flow hydraulic pump.
It is equipped with a vibrating sieve that filters out any solid elements in the mixture (stones, agglomerates, etc.) for a more uniform application.
Manufactured in our workshop in Spain, it is equipped with a control panel with buttons for easy use, an engine with automatic idle speed accelerator and a variable flow hydraulic pump.
It is equipped with a vibrating sieve that filters out any solid elements in the mixture (stones, agglomerates, etc.) for a more uniform application.
Technical characteristics
Motor
Kohler KSD 1403
Motor power
19 kW - stage V
Oil
5W40 synthetic
Fuel
Diesel B7
Diesel tank
25 L
Cooling
liquid
Speed of rotation
2400 RPM
Number of cylinders
3
Consumption
5,5 L/h
Hydraulic system
28 L
Engine monitoring panel
complete
Hydraulic controls
electrical/manual
Pump speed setting
manual
Automatic accelerator control
electrical/automatic
Hopper tank capacity
218 L
Tank drain plug
yes
Variable flow
from 0 to 230 L/min (14 m3/h)
Hydraulic pressure
from 0 to 140 bar
Pump pressure
from 0 to 30 bar
Maximum grain size
up to 10 mm
Pump
60R12
Pump reverse operation
yes
HP washer max pressure
140 bar
HP washer flow-rate
11 L/min
Overall length with tow bar
3,66 m
Overall length without tow bar
3,28 m
Overall width
1,24 m
Height at the highest point
1,28 m
Weight when full with oil and diesel
745 kg
Delivery height
80 m
Max. hose length
120 m
Delivered with
- a Ø50 x 20 m hose
- two cleaning balls Ø60
- a grease pump with a grease cartridge
- a complete high pressure washer lance
- a 10 m high pressure washer hose
- a storage carry-case
- two cleaning balls Ø60
- a grease pump with a grease cartridge
- a complete high pressure washer lance
- a 10 m high pressure washer hose
- a storage carry-case
Réf. 40450
Cat. MAPCPT
EAN : 3664962106490
Public price
26 990,00 € pre-tax
Description
Thermal engine machine for pumping products such as liquid screed or for spraying shotcrete.
Manufactured in our workshop in Spain, it is equipped with a control panel with buttons for easy use, an engine with automatic idle speed accelerator and a variable flow hydraulic pump.
It is equipped with a vibrating sieve that filters out any solid elements in the mixture (stones, agglomerates, etc.) for a more uniform application.
Manufactured in our workshop in Spain, it is equipped with a control panel with buttons for easy use, an engine with automatic idle speed accelerator and a variable flow hydraulic pump.
It is equipped with a vibrating sieve that filters out any solid elements in the mixture (stones, agglomerates, etc.) for a more uniform application.
Technical characteristics
Motor
Kohler KSD 1403
Motor power
19 kW - stage V
Oil
5W40 synthetic
Fuel
Diesel B7
Diesel tank
25 L
Cooling
liquid
Speed of rotation
2400 RPM
Number of cylinders
3
Consumption
5,5 L/h
Hydraulic system
28 L
Engine monitoring panel
complete
Hydraulic controls
electrical/manual
Pump speed setting
manual
Automatic accelerator control
electrical/automatic
Hopper tank capacity
218 L
Tank drain plug
yes
Variable flow
from 0 to 230 L/min (14 m3/h)
Hydraulic pressure
from 0 to 140 bar
Pump pressure
from 0 to 30 bar
Maximum grain size
up to 10 mm
Pump
60R12
Pump reverse operation
yes
HP washer max pressure
140 bar
HP washer flow-rate
11 L/min
Overall length with tow bar
3,66 m
Overall length without tow bar
3,28 m
Overall width
1,24 m
Height at the highest point
1,28 m
Weight when full with oil and diesel
745 kg
Delivery height
80 m
Max. hose length
120 m
Delivered with
- a Ø50 x 20 m hose
- two cleaning balls Ø60
- a grease pump with a grease cartridge
- a complete high pressure washer lance
- a 10 m high pressure washer hose
- a storage carry-case
- two cleaning balls Ø60
- a grease pump with a grease cartridge
- a complete high pressure washer lance
- a 10 m high pressure washer hose
- a storage carry-case
