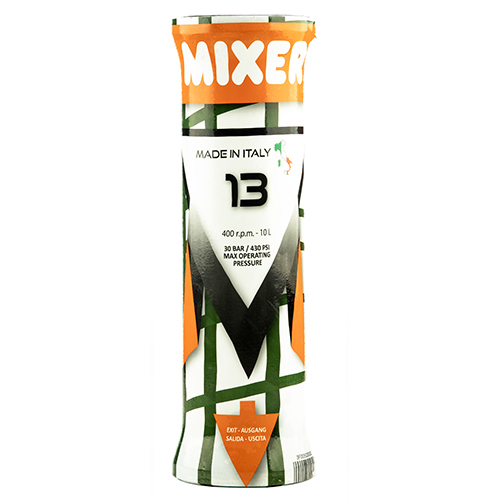

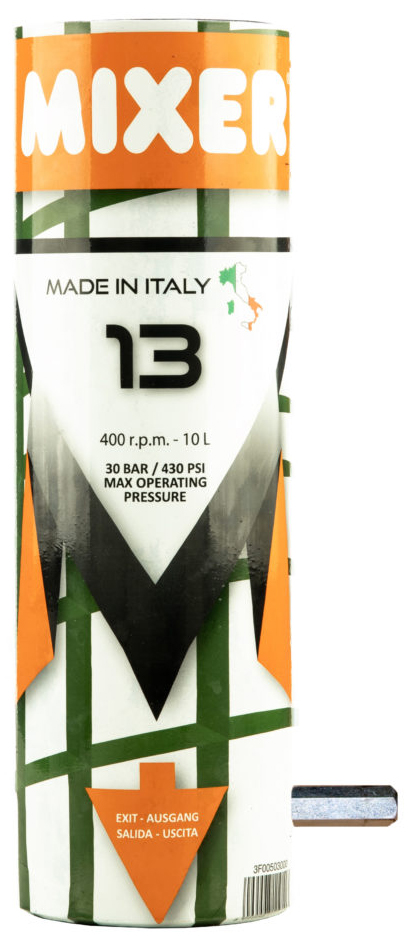

MIXER 13 D4-3 D4-1/2 pump stator with anti-rotation
Product datasheet
Options
Advice & DocumentsProduct datasheet
Technical characteristics
(*)speed and flow-rate with single-phased machine
Type
D4-3 / D4-1/2
RPM
320(*) / 400
Flow-rate (L/min)
10(*) / 13
Max pressure (bar)
30
Grain size (mm)
3
SH = Shore
70
Stator Ø
90
Length (mm)
270
Can be used with the following machines
Mixer Light/Sprinter, Mixpro 28, PFT G4 FU 230V, Ritmo XL FU 230V, M-Tec Mono-Mix, Plus Mono, Compact-Pro 25 (with bayonet rotor), Mai 4Job Business, Mai 4One Sirius Plus, Mai 4You Economy Business
Réf. MI3F00503001
Cat. CNSPRS
EAN : 8099998123749
Public price
58,21 € pre-tax
Technical characteristics
(*)speed and flow-rate with single-phased machine
Type
D4-3 / D4-1/2
RPM
320(*) / 400
Flow-rate (L/min)
10(*) / 13
Max pressure (bar)
30
Grain size (mm)
3
SH = Shore
70
Stator Ø
90
Length (mm)
270
Can be used with the following machines
Mixer Light/Sprinter, Mixpro 28, PFT G4 FU 230V, Ritmo XL FU 230V, M-Tec Mono-Mix, Plus Mono, Compact-Pro 25 (with bayonet rotor), Mai 4Job Business, Mai 4One Sirius Plus, Mai 4You Economy Business
