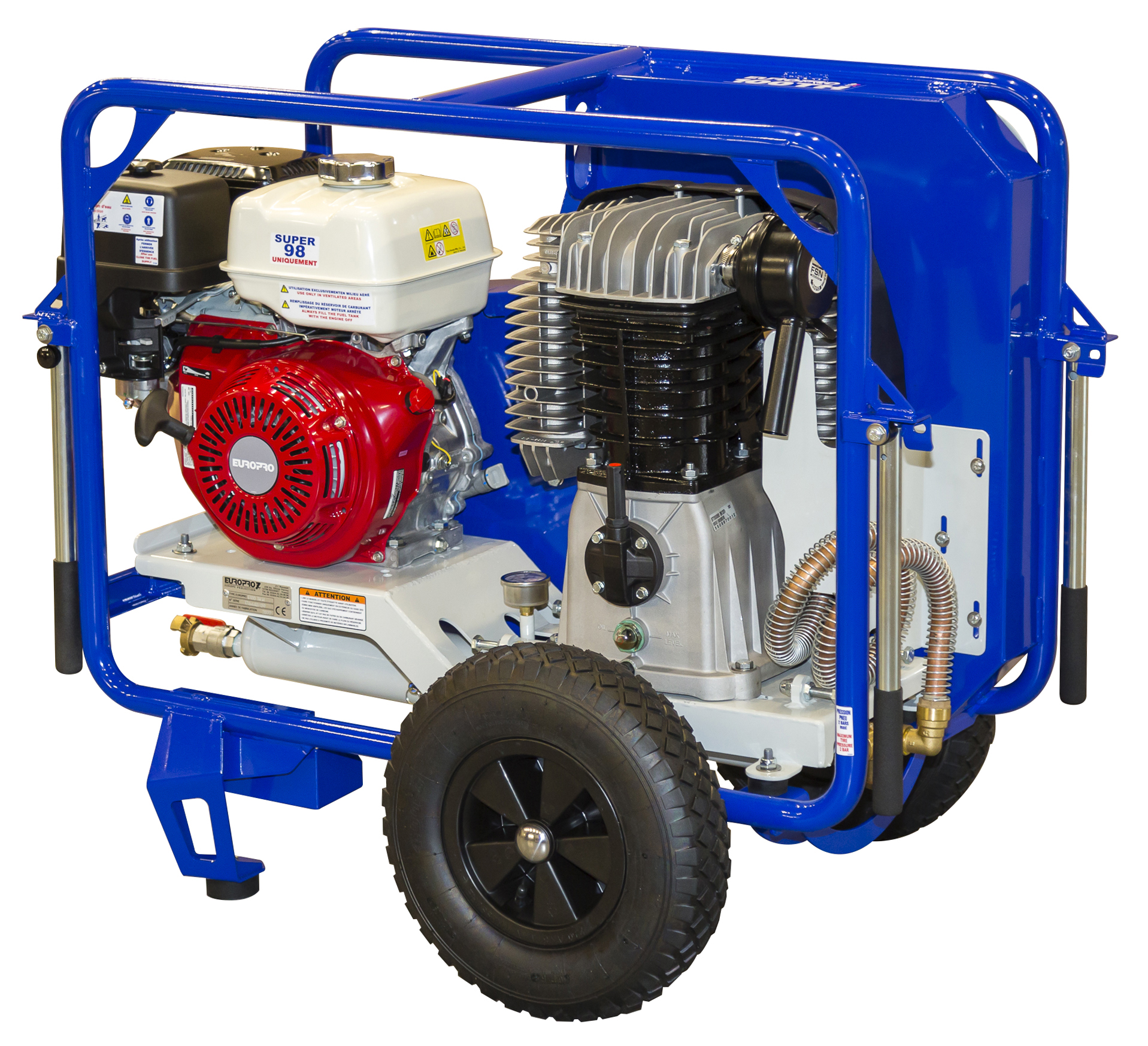

EUROPRO 100 TH compressor 13HP HONDA electric starter
Product datasheet
Options
Advice & Documents
Exploded viewsProduct datasheet
Description
EUROPRO 100TH is a compressor designed for intensive use on all types of jobs. Equipped with a petrol engine, it operates with E5.
It is equipped with an automatic valve that controls the pressure in the tank, an air outlet with quick-connect half-coupling and 4 folding transport arms.
It is equipped with an automatic valve that controls the pressure in the tank, an air outlet with quick-connect half-coupling and 4 folding transport arms.
To use with
Spraying machine, sandblaster, slurry & paint spray-gun, pneumatic tools…
Technical characteristics
Rotation speed
1300 RPM
Flow-rate of air absorbed
1080 L/min (65 m3/h)
Quantity of oil (crankcase)
1,6 L
Oil consumption
1,2 g/h
Motor power
9,69 kW
Transmission
by belt
Engine
HONDA
Fuel used
E5
Fuel consumption
4 L/h
Fuel tank capacity
6,1 L
Safety valve
yes
Tank capacity
2,64 L
Maximum pressure
10 bar
Air coupling
quick-connect
Dimensions (L x w x h)
109 x 70 x 85 cm
Weight
170 kg
Noise level
101 Lwa
Réf. 80365
Cat. MAPCOE
EAN : 3664962063946
Public price
6 290,00 € pre-tax
Description
EUROPRO 100TH is a compressor designed for intensive use on all types of jobs. Equipped with a petrol engine, it operates with E5.
It is equipped with an automatic valve that controls the pressure in the tank, an air outlet with quick-connect half-coupling and 4 folding transport arms.
It is equipped with an automatic valve that controls the pressure in the tank, an air outlet with quick-connect half-coupling and 4 folding transport arms.
To use with
Spraying machine, sandblaster, slurry & paint spray-gun, pneumatic tools…
Technical characteristics
Rotation speed
1300 RPM
Flow-rate of air absorbed
1080 L/min (65 m3/h)
Quantity of oil (crankcase)
1,6 L
Oil consumption
1,2 g/h
Motor power
9,69 kW
Transmission
by belt
Engine
HONDA
Fuel used
E5
Fuel consumption
4 L/h
Fuel tank capacity
6,1 L
Safety valve
yes
Tank capacity
2,64 L
Maximum pressure
10 bar
Air coupling
quick-connect
Dimensions (L x w x h)
109 x 70 x 85 cm
Weight
170 kg
Noise level
101 Lwa
