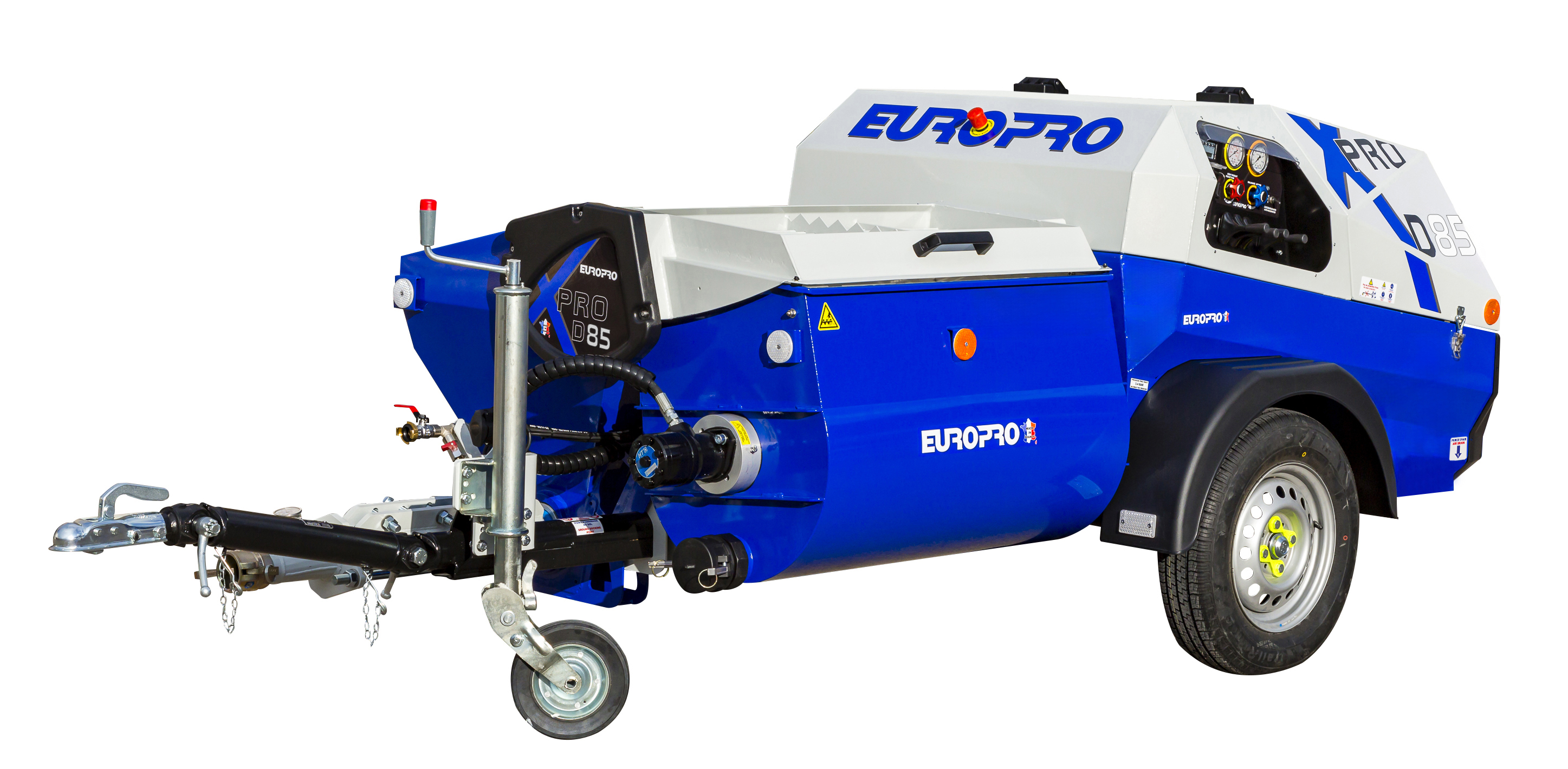

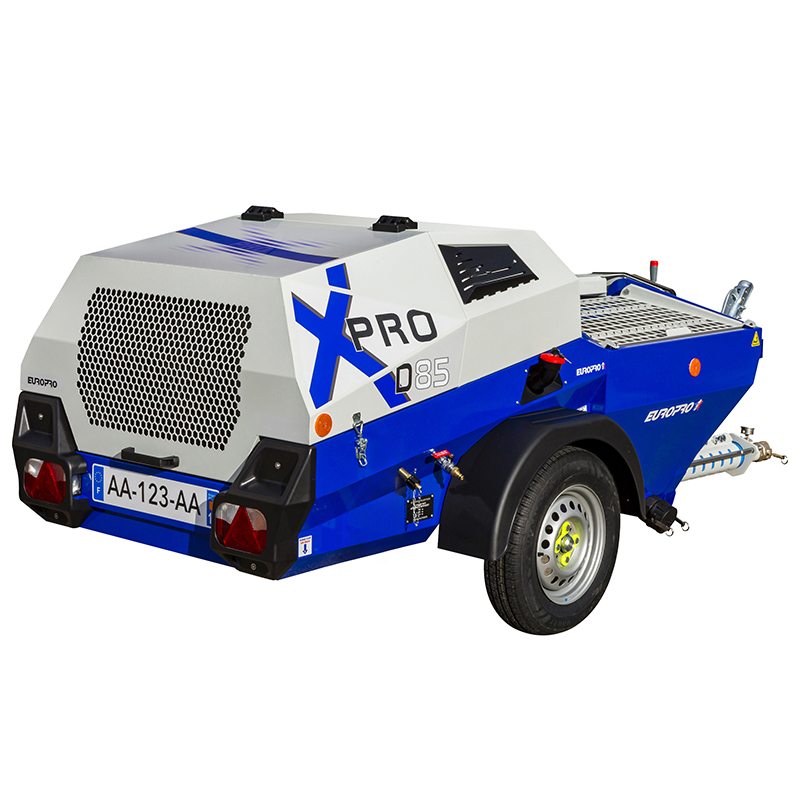

X-PRO D85 spraying machine
Product datasheet
Options
Advice & Documents
Exploded viewsProduct datasheet
Description
Designed for large-scale outdoor projects, this thermal spraying machine stands out for its robustness, flexibility, and reliability.
Adaptable to many types of construction sites, it guarantees fast application and uniform finish.
Thanks to its integrated mixer, materials are prepared with precision, facilitating smooth and effortless spraying.
Its complete equipment — hydraulic control panel, automatic accelerator, integrated water meter, and high-pressure washer — ensures intuitive handling and optimal user comfort.
Manufactured in France, it is equipped with a stainless steel tank for greater durability and resistance to the most demanding conditions.
A number of options can be fitted: rear stabilisers, vibrating sieve, slinging kit, etc.
Adaptable to many types of construction sites, it guarantees fast application and uniform finish.
Thanks to its integrated mixer, materials are prepared with precision, facilitating smooth and effortless spraying.
Its complete equipment — hydraulic control panel, automatic accelerator, integrated water meter, and high-pressure washer — ensures intuitive handling and optimal user comfort.
Manufactured in France, it is equipped with a stainless steel tank for greater durability and resistance to the most demanding conditions.
A number of options can be fitted: rear stabilisers, vibrating sieve, slinging kit, etc.
Applications
Large wall jobs in hydraulic coatings, mortars, E.W.I. ...
Technical characteristics
Motor
Kohler KSD 1403
Motor power
19 kW - stage V
Fuel
Diesel B7
Diesel tank
25 L
Cooling
liquid
Rotation speed
2500 rpm
Number of cylinders
3
Consumption
4,5 L/h
Hydraulic system
28 L
Compressor
twin-cylinder
Compressor flow-rate at 4 bar
400 L/min
Engine monitoring panel
complete
Hydraulic controls
manual
Mixer rotation speed setting
yes
Pump speed setting
yes
Accelerator control
automatic
Mixer tank capacity
230 L
Mixer grid
openwork
Mixer drainage plug
3 inches
Water meter
yes
Mixing paddle
yes
Rotation
2 directions
Loading height
86 cm
Hopper tank capacity
240 L
Hopper drainage plug
3 inches
Pump
MAP 11
Variable flow-rate
from 0 to 100 L/min (6 m3/h)
Max. grain size
up to 6 mm
Pressure
from 0 to 40 bar
Pump reverse operation
yes
HP washer
yes
Overall length with tow bar
3,58 m
Overall length without tow bar
3,05 m
Overall width
1,50 m
Height at the highest point
1,28 m
Weight when full with oil and diesel
900 kg
Noise level
101 Lwa
Axle
with brake
Delivery height
50 m
Max. hose length
80 m
2L74 pump (optional)
Variable flow-rate
from 0 to 200 L/min (12 m3/h)
Max. grain size
up to 8 mm
2L75 pump (optional)
Variable flow-rate
from 0 to 250 L/min (15 m3/h)
Max. grain size
up to 10 mm
Delivered with
- a MAP 11 pump
- a Ø35 x 13,30 m product hose M50 x F35
- a Ø35 x 13,30 m product hose M35 x F35
- a Ø25 x 5 m hose M35 x M25
- a Ø10 x 33 m air hose
- a spraying lance
- eight spraying nozzles (Ø8, 10, 12, 14, 16, 18, 20 & 22 mm)
- three grouting nozzles (Ø10, 12 & 14)
- two Ø30 cleaning balls
- two Ø50 cleaning balls
- a greasing pump with a grease cartridge
- a pressure controller adapter
- a pressure controller
- a storage carry-case
- a suspension strap
- a Ø35 x 13,30 m product hose M50 x F35
- a Ø35 x 13,30 m product hose M35 x F35
- a Ø25 x 5 m hose M35 x M25
- a Ø10 x 33 m air hose
- a spraying lance
- eight spraying nozzles (Ø8, 10, 12, 14, 16, 18, 20 & 22 mm)
- three grouting nozzles (Ø10, 12 & 14)
- two Ø30 cleaning balls
- two Ø50 cleaning balls
- a greasing pump with a grease cartridge
- a pressure controller adapter
- a pressure controller
- a storage carry-case
- a suspension strap
Réf. 40350
Cat. MAPCPT
EAN : 3664962105127
Public price
29 990,00 € pre-tax
