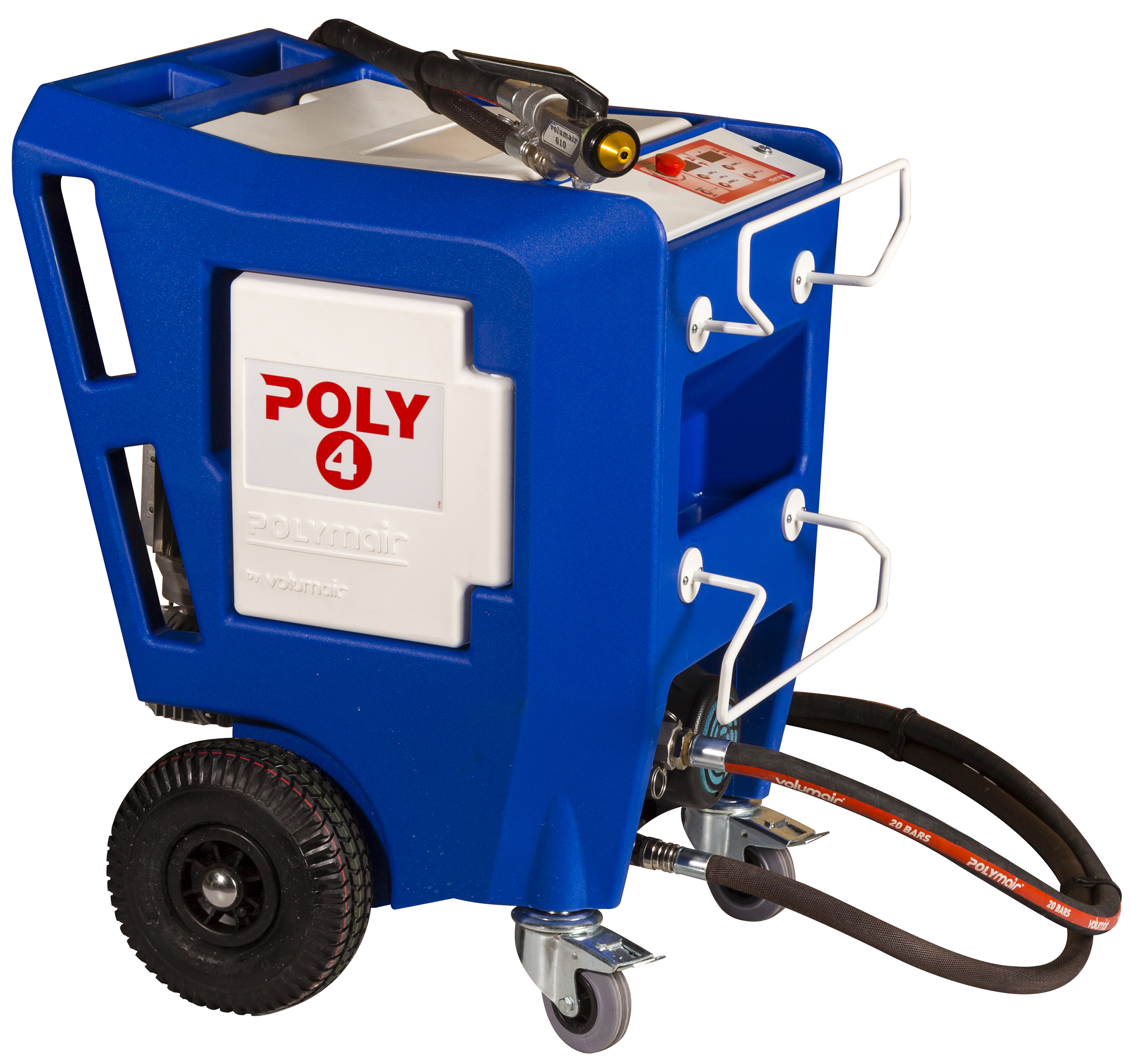

POLYMAIR 4 HVLP spraying system
Product datasheet
Options
Advice & Documents
Exploded viewsProduct datasheet
Description
With an innovative, ergonomic and functional design, the POLYMAIR H.V.L.P. spraying system is ideal for spraying slurry or paint products.
It is equipped with a 5-stage H.V.L.P. turbine. Its polyethylene tank (easy to clean due to the choice of this low adhesion material) has numerous storage spaces included.
It is equipped with a 5-stage H.V.L.P. turbine. Its polyethylene tank (easy to clean due to the choice of this low adhesion material) has numerous storage spaces included.
Applications
Interior paintings
Film-coated
Cork to spray
Decorative products to spray...
Film-coated
Cork to spray
Decorative products to spray...
Technical characteristics
Product flow-rate
0 to 4 kg/min
Motor power
0,75 kW
Electrical supply
230 V - 50 & 60 Hz
Motor current
3,64 A
Tank capacity
32 L
Maximum grain size
1,5 mm
Pump
MAP 1
Maximum pressure
30 bar
Minimum pressure
10 bar
Air coupling
quick-connect
Turbine power
1700 W
Stages
5
Turbine pressure
0,67 bar
Electronic control
yes
Dimensions (L x w x h)
72 x 60 x 90 cm
Weight
60 kg
Delivered with
- a 5 m H.V.L.P. air hose
- a 610 spray lance
- a hose for slurry products Ø19 mm x 5 m
- four nozzles n° 4, 5, 6, and 8
- two cleaning balls
- a paint spray-gun
- a 5 m paint hose
- a Ø 2,5 mm needle
- a female quick-connect
- a cleaning brush
- an unplugging pin
- a multi-use wrench
- a blowing gun
- a 610 spray lance
- a hose for slurry products Ø19 mm x 5 m
- four nozzles n° 4, 5, 6, and 8
- two cleaning balls
- a paint spray-gun
- a 5 m paint hose
- a Ø 2,5 mm needle
- a female quick-connect
- a cleaning brush
- an unplugging pin
- a multi-use wrench
- a blowing gun
Réf. 30500
Cat. VOLPOL
EAN : 3664962019431
Public price
5 090,00 € pre-tax
Description
With an innovative, ergonomic and functional design, the POLYMAIR H.V.L.P. spraying system is ideal for spraying slurry or paint products.
It is equipped with a 5-stage H.V.L.P. turbine. Its polyethylene tank (easy to clean due to the choice of this low adhesion material) has numerous storage spaces included.
It is equipped with a 5-stage H.V.L.P. turbine. Its polyethylene tank (easy to clean due to the choice of this low adhesion material) has numerous storage spaces included.
Applications
Interior paintings
Film-coated
Cork to spray
Decorative products to spray...
Film-coated
Cork to spray
Decorative products to spray...
Technical characteristics
Product flow-rate
0 to 4 kg/min
Motor power
0,75 kW
Electrical supply
230 V - 50 & 60 Hz
Motor current
3,64 A
Tank capacity
32 L
Maximum grain size
1,5 mm
Pump
MAP 1
Maximum pressure
30 bar
Minimum pressure
10 bar
Air coupling
quick-connect
Turbine power
1700 W
Stages
5
Turbine pressure
0,67 bar
Electronic control
yes
Dimensions (L x w x h)
72 x 60 x 90 cm
Weight
60 kg
Delivered with
- a 5 m H.V.L.P. air hose
- a 610 spray lance
- a hose for slurry products Ø19 mm x 5 m
- four nozzles n° 4, 5, 6, and 8
- two cleaning balls
- a paint spray-gun
- a 5 m paint hose
- a Ø 2,5 mm needle
- a female quick-connect
- a cleaning brush
- an unplugging pin
- a multi-use wrench
- a blowing gun
- a 610 spray lance
- a hose for slurry products Ø19 mm x 5 m
- four nozzles n° 4, 5, 6, and 8
- two cleaning balls
- a paint spray-gun
- a 5 m paint hose
- a Ø 2,5 mm needle
- a female quick-connect
- a cleaning brush
- an unplugging pin
- a multi-use wrench
- a blowing gun
