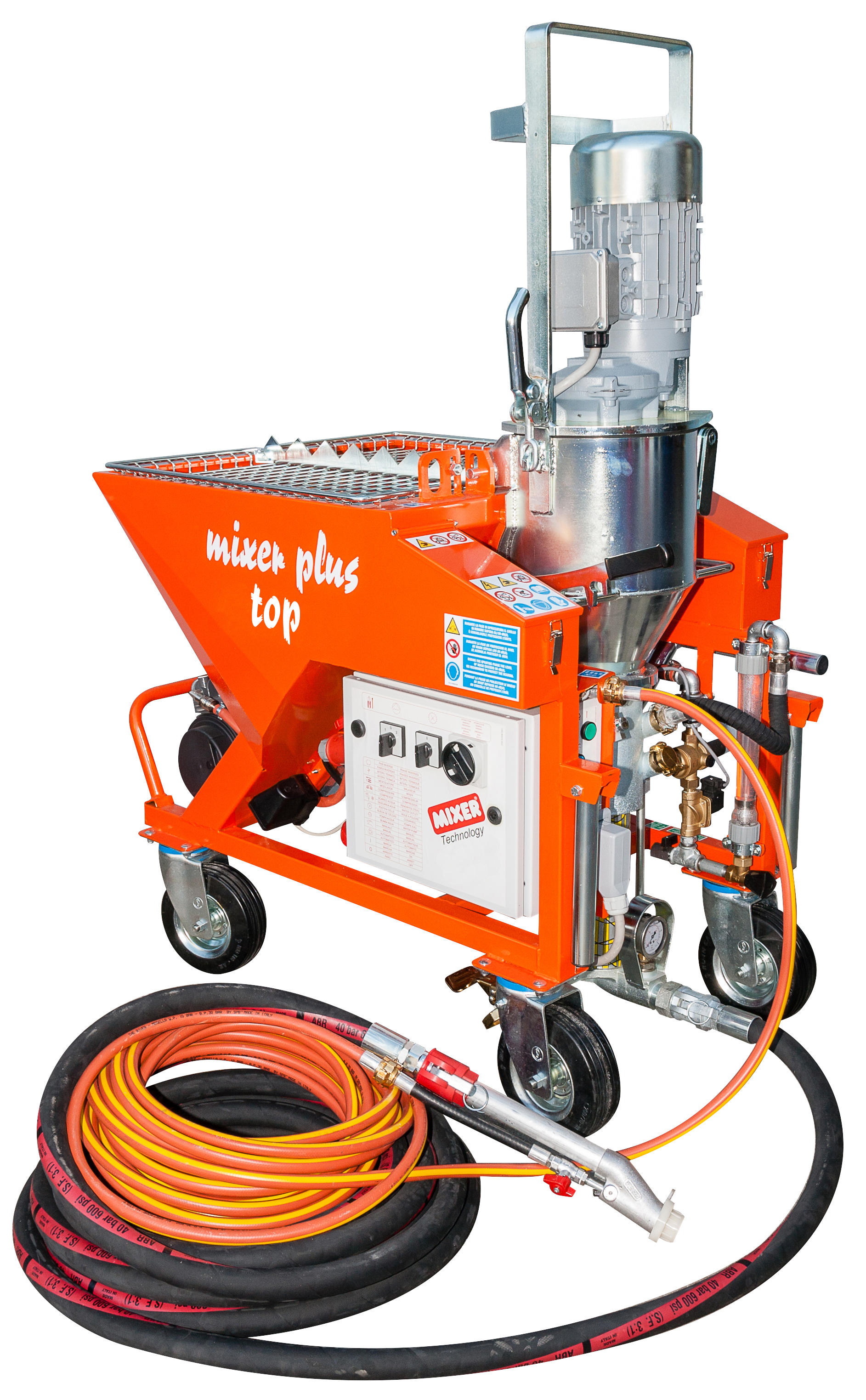

MIXER PLUS TOP machine - 400V
Product datasheet
Advice & DocumentsProduct datasheet
Description
Three-phased (400 V) continuous mixing pump, ideal for spraying pre-mixed surface coatings.
The Mixer Plus Top is fitted with a revolutionary self-diagnostics system that reports any potential malfunctions.
The Mixer Plus Top is fitted with a revolutionary self-diagnostics system that reports any potential malfunctions.
Applications
Pre-mixed surface coatings containing lime, cement, finishing compounds, fillers, coloured compounds, adhesives, screeds, etc. and any product compatible with the mechanical spraying.
Technical characteristics
Tank capacity
Power supply
Motor thermal protection
Variable speed
Water pressure booster
Flow meter
Water shortage safety device
Spraying flow rate
Max. spraying distance
Loading height
Dimensions (l x w x h)
Weight
Gear motor for mixing chamber
Gear motor for powder scoop wheel
Compressor
Power supply
Motor thermal protection
Variable speed
Water pressure booster
Flow meter
Water shortage safety device
Spraying flow rate
Max. spraying distance
Loading height
Dimensions (l x w x h)
Weight
Gear motor for mixing chamber
Gear motor for powder scoop wheel
Compressor
150 L
400 V - 50 Hz
yes
no
yes
yes
yes
6 to 50 L/min
40 m
91 cm
110 x 72 x 155 cm
240 kg
5,5 kW - 400 RPM - 50 Hz
0,5 kW - 28 RPM
MI9002005000
400 V - 50 Hz
yes
no
yes
yes
yes
6 to 50 L/min
40 m
91 cm
110 x 72 x 155 cm
240 kg
5,5 kW - 400 RPM - 50 Hz
0,5 kW - 28 RPM
MI9002005000
Delivered with
- Anti-seize spray
- Sprinter cleaning shaft
- 19×26 40 LM water hose with GEKA coupling
- 50 LM neoprene 4×2,5 power cord with plug
- Adapter + GEKA coupling
- Releasing tool
- Cleaning part
- 25×37 15 LM spray hose with couplings
- 13×19 16 LM air hose with GEKA coupling
- Mixer full spray lance made from aluminium tubing
- Maintenance kit
- Sprinter cleaning shaft
- 19×26 40 LM water hose with GEKA coupling
- 50 LM neoprene 4×2,5 power cord with plug
- Adapter + GEKA coupling
- Releasing tool
- Cleaning part
- 25×37 15 LM spray hose with couplings
- 13×19 16 LM air hose with GEKA coupling
- Mixer full spray lance made from aluminium tubing
- Maintenance kit
Réf. MI903100900A
Cat. MAPMXR
EAN : 8099998009290
Public price
9 590,00 € pre-tax
