MK-MIX 500 complete continuous mixing machine - 400V 50 Hz
Product datasheet
Advice & DocumentsProduct datasheet
Description

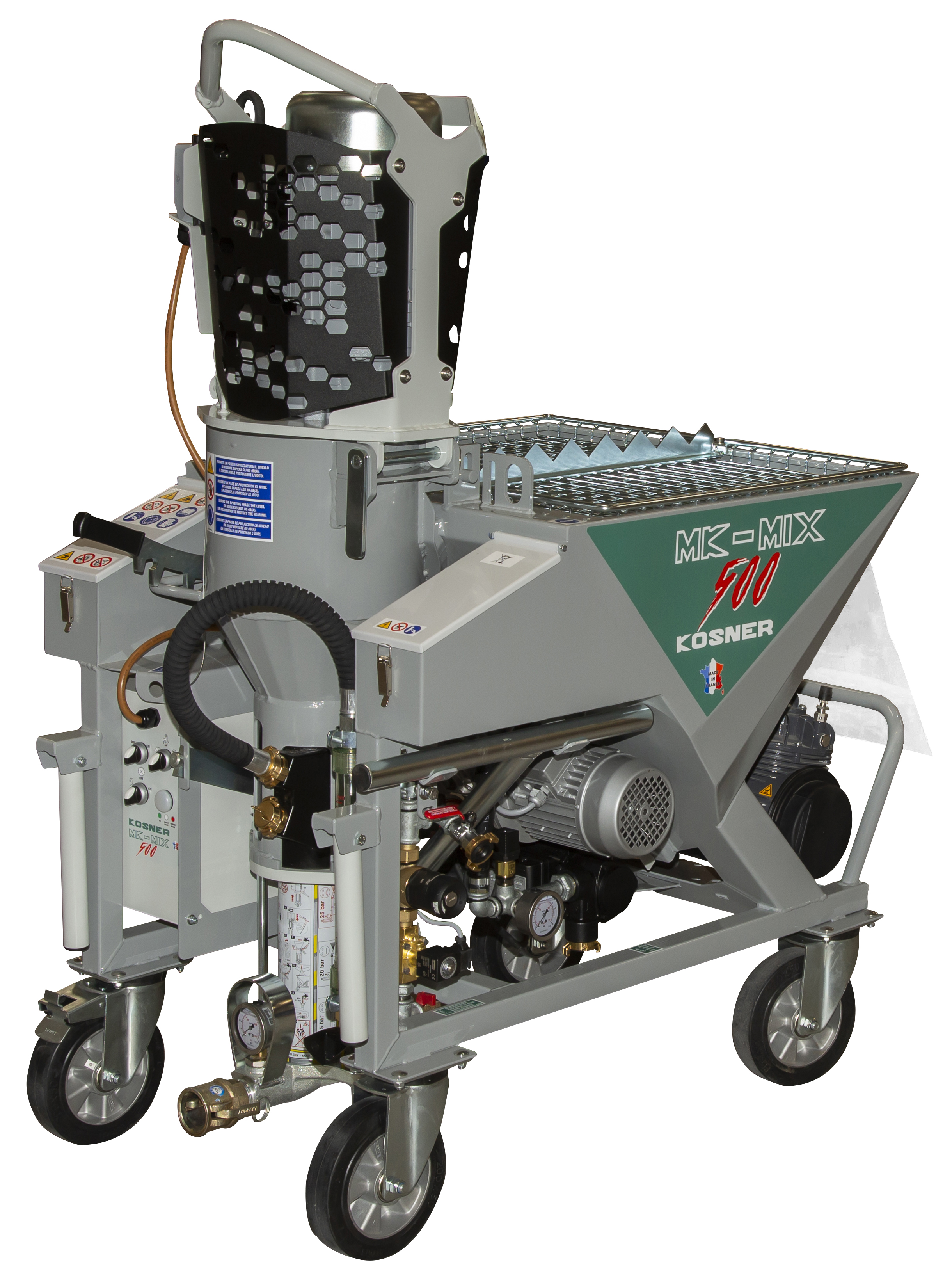

MK-MIX 500 is a continuous mixing pump designed for big construction sites.
Easy to move with its 4 steerable wheels.
Dry product separated from the mixing chamber and powder supply is made by wheel.
The model is equipped with an electromechanical control panel, without electronics.
Easy to move with its 4 steerable wheels.
Dry product separated from the mixing chamber and powder supply is made by wheel.
The model is equipped with an electromechanical control panel, without electronics.
Applications
Floor screed, plaster, air insulation, fireproof products, light powders (polystyrene) ...
Products with instant kneading and no need for rest time.
Products with instant kneading and no need for rest time.
Technical characteristics
Tank capacity
150 L
Electrical supply
400 V - 50 Hz
Thermal protection
yes
Geared-motor driving mixing arm
5,5 kW
Geared-motor powder wheel
0,5 kW
Compressor
yes
Compressor power
1,1 kW
Compressor air flow
18 m3/h
Variable speed
no
Water pump
yes
Flow-meter
plastic tube with float
Water safety switch
yes
Product pressure
0 to 25 bar
Product flow-rate
up to 50 L/min
Rotor/stator
T1 - 22 L/min
Spraying yield
34 bags of 33 kg/h
Spraying max. hose length
35 m
Loading height
91 cm
Dimensions (l x w x h)
111 x 67 x 155 cm
Weight
260 kg
Noise level
92 Lwa
Delivered with
- a complete lance with aluminium pipe
- a Ø25 x 15 m product hose
- a Ø19 x 2 m pouring hose
- a Ø13 x 16 m air hose with GEKA
- a water hose Ø19 x 20 m with GEKA
- a compressor
- an unplugging key
- a mounting spray for rotor/stator
- two cleaning balls
- a Ø25 x 15 m product hose
- a Ø19 x 2 m pouring hose
- a Ø13 x 16 m air hose with GEKA
- a water hose Ø19 x 20 m with GEKA
- a compressor
- an unplugging key
- a mounting spray for rotor/stator
- two cleaning balls
Réf. K040101
Cat. MAPKOS
EAN : 3664962104830
Public price
9 490,00 € pre-tax
Description
MK-MIX 500 is a continuous mixing pump designed for big construction sites.
Easy to move with its 4 steerable wheels.
Dry product separated from the mixing chamber and powder supply is made by wheel.
The model is equipped with an electromechanical control panel, without electronics.
Easy to move with its 4 steerable wheels.
Dry product separated from the mixing chamber and powder supply is made by wheel.
The model is equipped with an electromechanical control panel, without electronics.
Applications
Floor screed, plaster, air insulation, fireproof products, light powders (polystyrene) ...
Products with instant kneading and no need for rest time.
Products with instant kneading and no need for rest time.
Technical characteristics
Tank capacity
150 L
Electrical supply
400 V - 50 Hz
Thermal protection
yes
Geared-motor driving mixing arm
5,5 kW
Geared-motor powder wheel
0,5 kW
Compressor
yes
Compressor power
1,1 kW
Compressor air flow
18 m3/h
Variable speed
no
Water pump
yes
Flow-meter
plastic tube with float
Water safety switch
yes
Product pressure
0 to 25 bar
Product flow-rate
up to 50 L/min
Rotor/stator
T1 - 22 L/min
Spraying yield
34 bags of 33 kg/h
Spraying max. hose length
35 m
Loading height
91 cm
Dimensions (l x w x h)
111 x 67 x 155 cm
Weight
260 kg
Noise level
92 Lwa
Delivered with
- a complete lance with aluminium pipe
- a Ø25 x 15 m product hose
- a Ø19 x 2 m pouring hose
- a Ø13 x 16 m air hose with GEKA
- a water hose Ø19 x 20 m with GEKA
- a compressor
- an unplugging key
- a mounting spray for rotor/stator
- two cleaning balls
- a Ø25 x 15 m product hose
- a Ø19 x 2 m pouring hose
- a Ø13 x 16 m air hose with GEKA
- a water hose Ø19 x 20 m with GEKA
- a compressor
- an unplugging key
- a mounting spray for rotor/stator
- two cleaning balls
